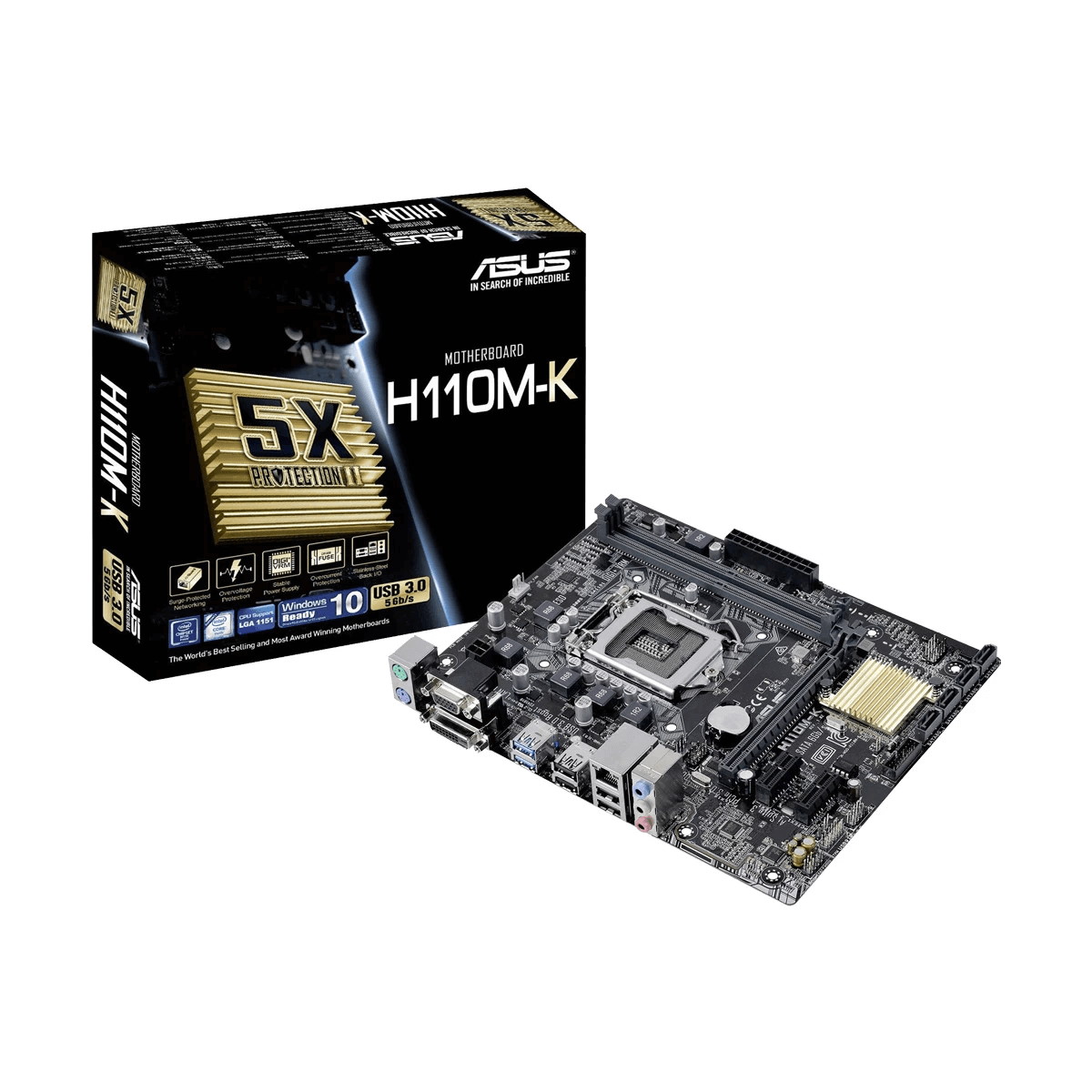

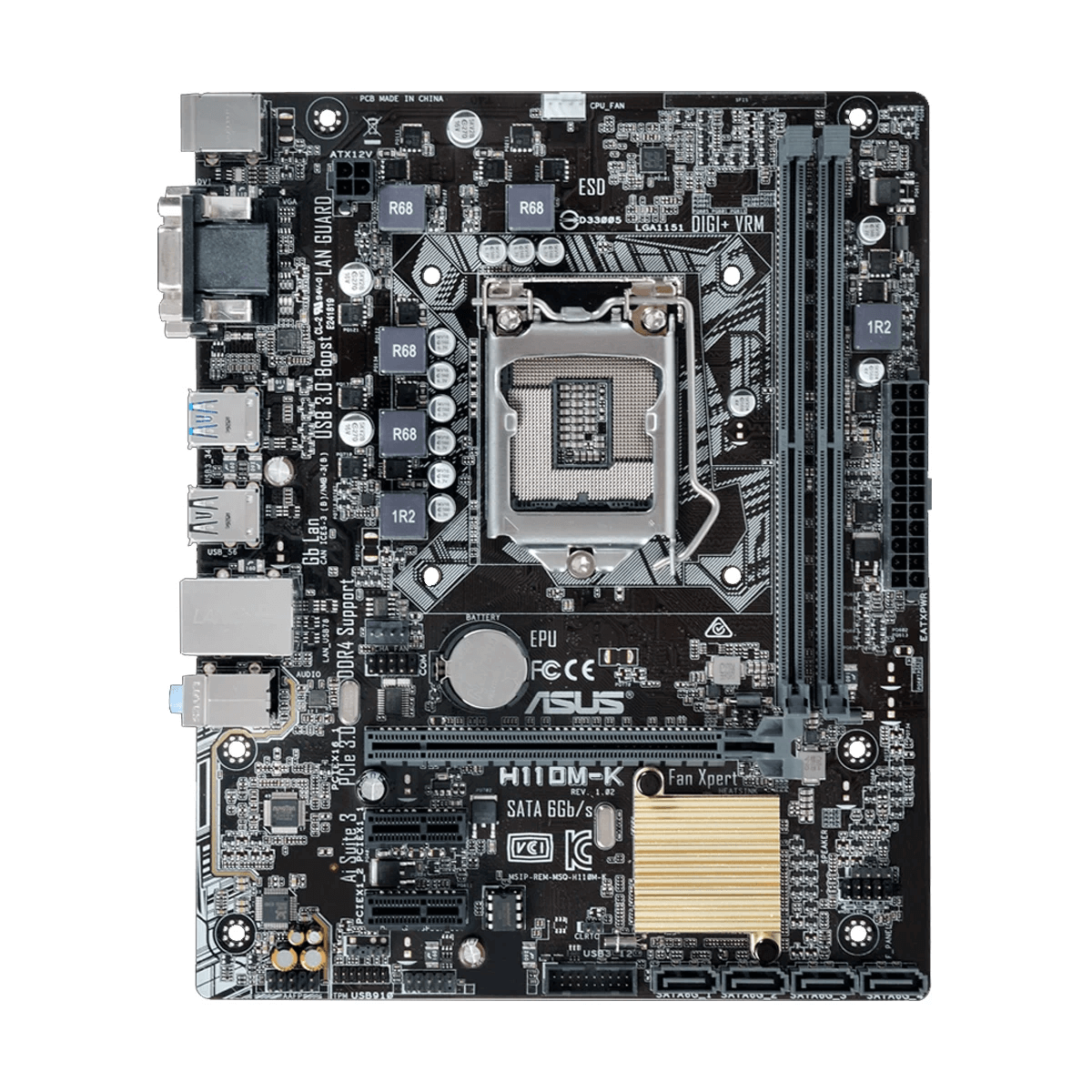

Asus H110M-K micro-ATX DDR4 Motherboard

Brand: Asus

Chipset: Intel® H110

CPU:

Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Memory:

2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Onboard Graphics:

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : DVI-D/RGB ports

– Supports DVI-D with max. resolution 1920  x 1200  @ 60 Hz

– Supports RGB with max. resolution 1920  x 1200  @ 60  Hz

Maximum shared memory of 1024  MB (for iGPU exclusively)

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Audio:

Realtek ALC887/897 8-Channel High Definition Audio CODEC *1

– Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

– LED-illuminated design

– Audio Shielding

– Dedicated audio PCB layers

– Premium Japanese-made audio capacitors

LAN: Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Expansion Slots:

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)

2 x PCIe 2.0 x1

Storage Interface:

Intel® H110 chipset :

4 x SATA 6Gb/s port(s), gray

USB:

Intel® H110 chipset :

6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board)

Intel® H110 chipset :

4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, Type-A, 2 at mid-board)

Internal I/O Connectors:

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x COM port(s) connector(s)

4 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x 14-1 pin TPM connector

Back Panel Connectors:

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DVI-D

1 x D-Sub

1 x LAN (RJ45) port(s)

2 x USB 3.2 Gen 1 (blue) Type-A

4 x USB 2.0

3 x Audio jack(s)

Unique Features:

ASUS 5X Protection II :

– ASUS LANGuard – 2.5X higher surge tolerance

– ASUS Overvoltage Protection – World-class circuit-protecting power design

– ASUS DIGI+ VRM – Premium components provide better power efficiency

– ASUS DRAM Overcurrent Protection – Prevents damage from short circuits

– ASUS Stainless-Steel Back I/O – 3X corrosion-resistance for greater durability

ASUS EPU :

– EPU

ASUS Exclusive Features :

– AI Suite 3

– Ai Charger

– Anti-Surge

– USB 3.0 Boost

– Disk Unlocker

– Mobo Connect

– PC Cleaner

ASUS Quiet Thermal Solution :

– Stylish Fanless Design Heat-sink solution

– ASUS Fan Xpert

ASUS EZ DIY :

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

– Push Notice

ASUS Q-Design :

– ASUS Q-Slot

– ASUS Q-DIMM

Media Streamer

Operating System:

Windows® 10

Windows® 8.1

Windows® 7 *2

Form Factor:

mATX Form Factor

8.9  inch x 7.2  inch ( 22.6  cm x 18.3  cm )

Warranty: Three Year Replacement Warranty
