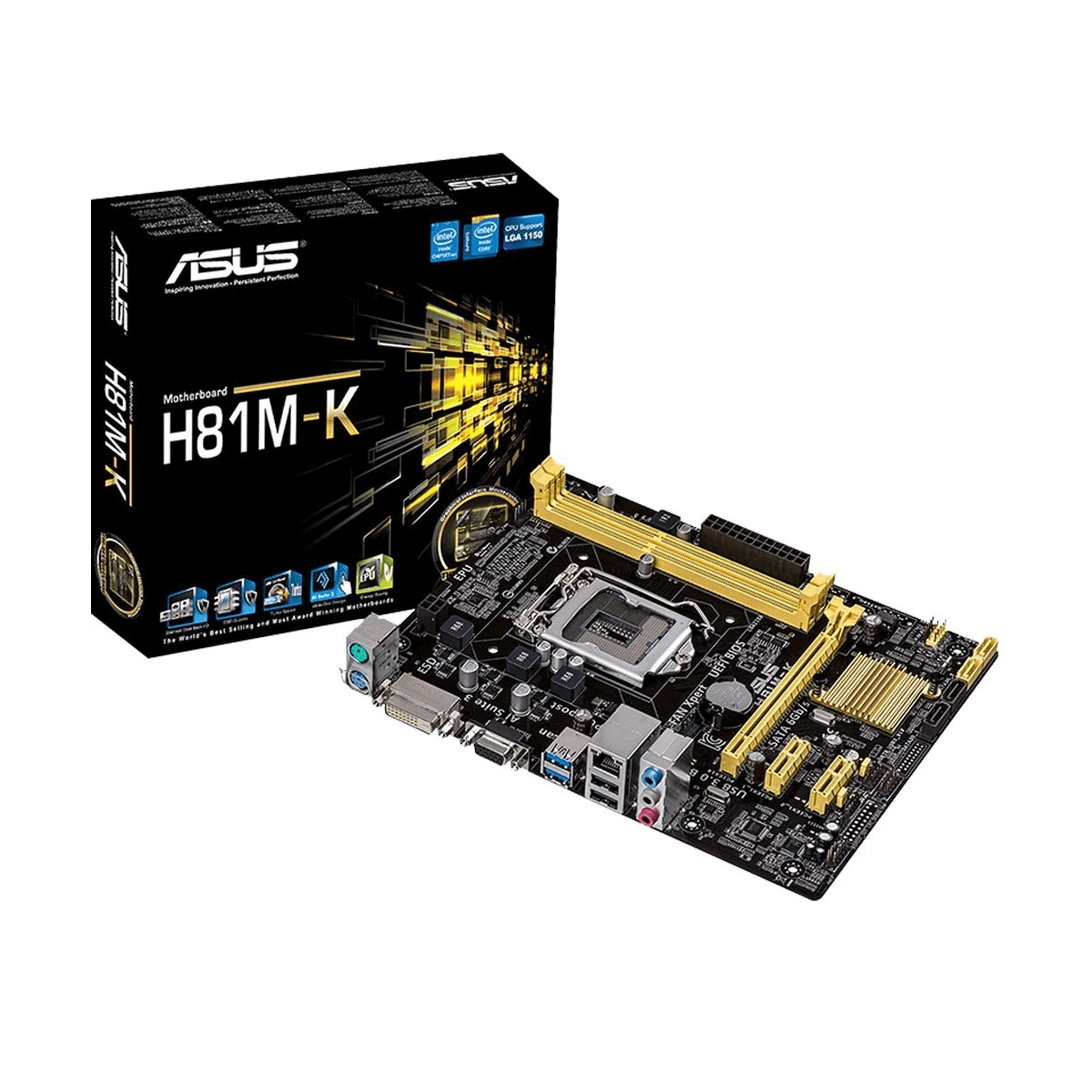

Asus H81M-K micro-ATX DDR4 Motherboard

Brand: Asus

Chipset: Intel® H81

CPU:

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 22 nm CPU

Supports Intel® Turbo Boost Technology 2.0

BIOS:

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Memory:

2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Onboard Graphics:

Integrated Graphics Processor

Multi-VGA output support : DVI/RGB ports

– Supports DVI with max. resolution 1920  x 1200  @ 60 Hz

– Supports RGB with max. resolution 1920  x 1200  @ 60  Hz

Maximum shared memory of 1024  MB (for iGPU exclusively)

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Audio:

Realtek ALC887/897 8-Channel High Definition Audio CODEC *2

– Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback

LAN: Realtek® 8111G, 1 x Gigabit LAN Controller(s)

Expansion Slots:

1 x PCIe x16

2 x PCIe 2.0 x1

Storage Interface:

2 x SATA 6Gb/s port(s), yellow,

2 x SATA 3Gb/s port(s), dark brown,

Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology

USB:

Intel® H81 chipset :

2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)

Intel® H81 chipset :

6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

Internal I/O Connectors:

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x SATA 6Gb/s connector(s)

2 x SATA 3Gb/s connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Internal speaker connector(s)

1 x Clear CMOS jumper(s)

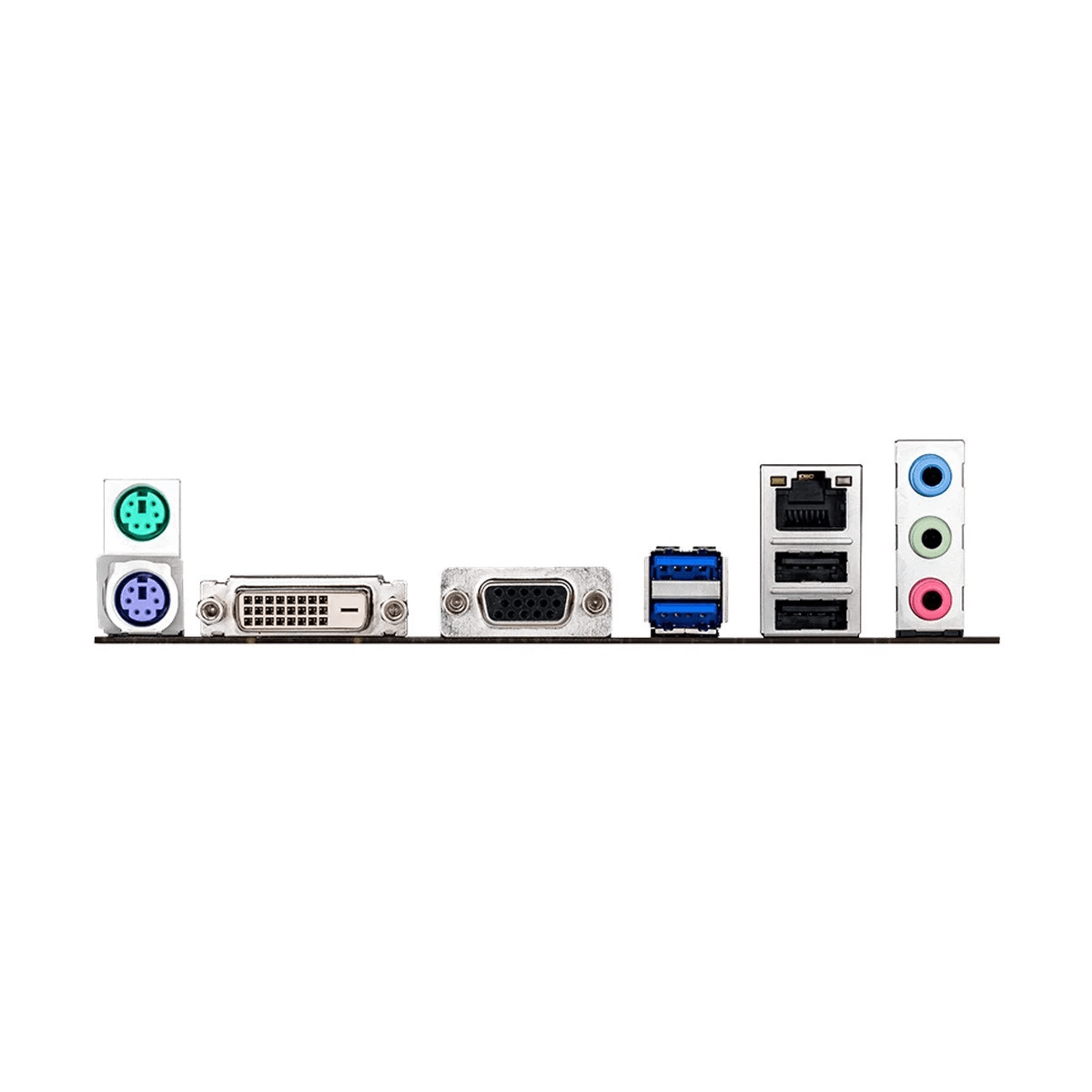

Back Panel Connectors:

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DVI

1 x D-Sub

1 x LAN (RJ45) port(s)

2 x USB 3.2 Gen 1 (blue)

2 x USB 2.0

3 x Audio jack(s)

Unique Features:

ASUS EPU :

– EPU

ASUS Exclusive Features :

– GPU Boost

– AI Suite 3

– Ai Charger

– Anti-Surge

– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

– Network iControl

– USB 3.0 Boost

– Disk Unlocker

ASUS Quiet Thermal Solution :

– Stylish Fanless Design Heat-sink solution

– ASUS Fan Xpert

ASUS EZ DIY :

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 2

ASUS Q-Design :

– ASUS Q-Slot

Operating System:

Windows® 10

Windows® 8.1

Windows® 7 *2

Form Factor:

uATX Form Factor

8.9  inch x 6.9  inch ( 22.6  cm x 17.5  cm )

Warranty: Three Year Replacement Warranty
