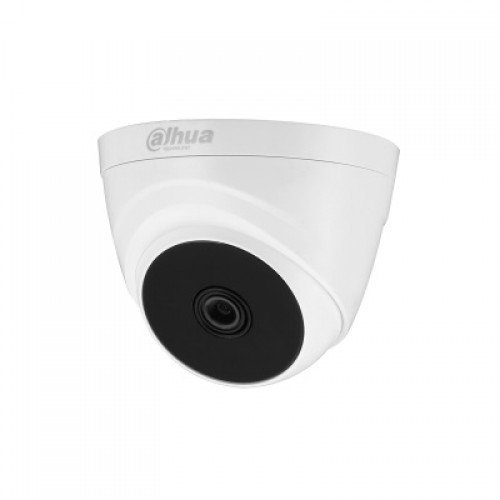

Dahua DH-HAC-T1A21P 2MP Fixed Dome Camera

Brand: Dahua

Model: Dahua DH-HAC-T1A21P

Camera:-

Pixel: 2 MP

Image Sensor: 2MP CMOS

Max. Resolution: 1920 (H) × 1080 (V)

Scanning System: Progressive

Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s

Min. Illumination: 0.04 lux@F2.0 (Color, 30 IRE), 0.004 lux@F2.0 (B/W, 30 IRE), 0 lux (Illuminator on)

S/N Ratio: >65 dB

Illumination Distance: 20 m (65.62 ft)

Illuminator On/Off Control: Auto/Manual

Illuminator Number: 1 (IR light)

Pan/Tilt/Rotation Range: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°

Lens:-

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length: 2.8 mm; 3.6 mm; 6 mm

Video:-

Video Frame Rate:

CVI:

PAL: 1080p@25 fps; 720p@25 fps

NTSC: 1080p@30 fps; 720p@30 fps

TVI:

PAL: 1080p@25 fps; 720p@25 fps

NTSC: 1080p@30 fps; 720p@30 fps

AHD:

PAL: 1080p@25 fps; 720p@25 fps

NTSC: 1080p@30 fps; 720p@30 fps

CVBS:

PAL: 960H

NTSC: 960H

Resolution: 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 ×576/960 × 480)

Day/Night: Auto (ICR)/Color/B/W

Port:-

Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC Port

Interface:-

Video Output: Switchable TVI/AHD/CVI/CVBS

General:-

Power Supply: 12 VDC ± 30%

Power Consumption Max: 2.3 W (12 VDC, IR on)

Operating Temperature: –40 °C to +60 °C (–40 °F to 140 °F)

Operating Humidity: <95% (RH), non-condensing

Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)

Casing: Plastic

Product Dimensions: Φ85.4 mm × 68.8 mm (Φ3.36″ × 2.71″)

Packaging Dimensions: 109 mm × 109 mm × 85 mm (4.29″ × 4.29″ × 3.35″)

Net Weight; 0.09 kg (0.20 lb)

Gross Weight; 0.13 kg (0.29 lb)

Installation: Wall mount; ceiling mount; horizontal pole mount

Approval:-

Protection: IP67

Country Of Origin: China

Made in/ Assemble: China

Warranty: One Year Warranty
