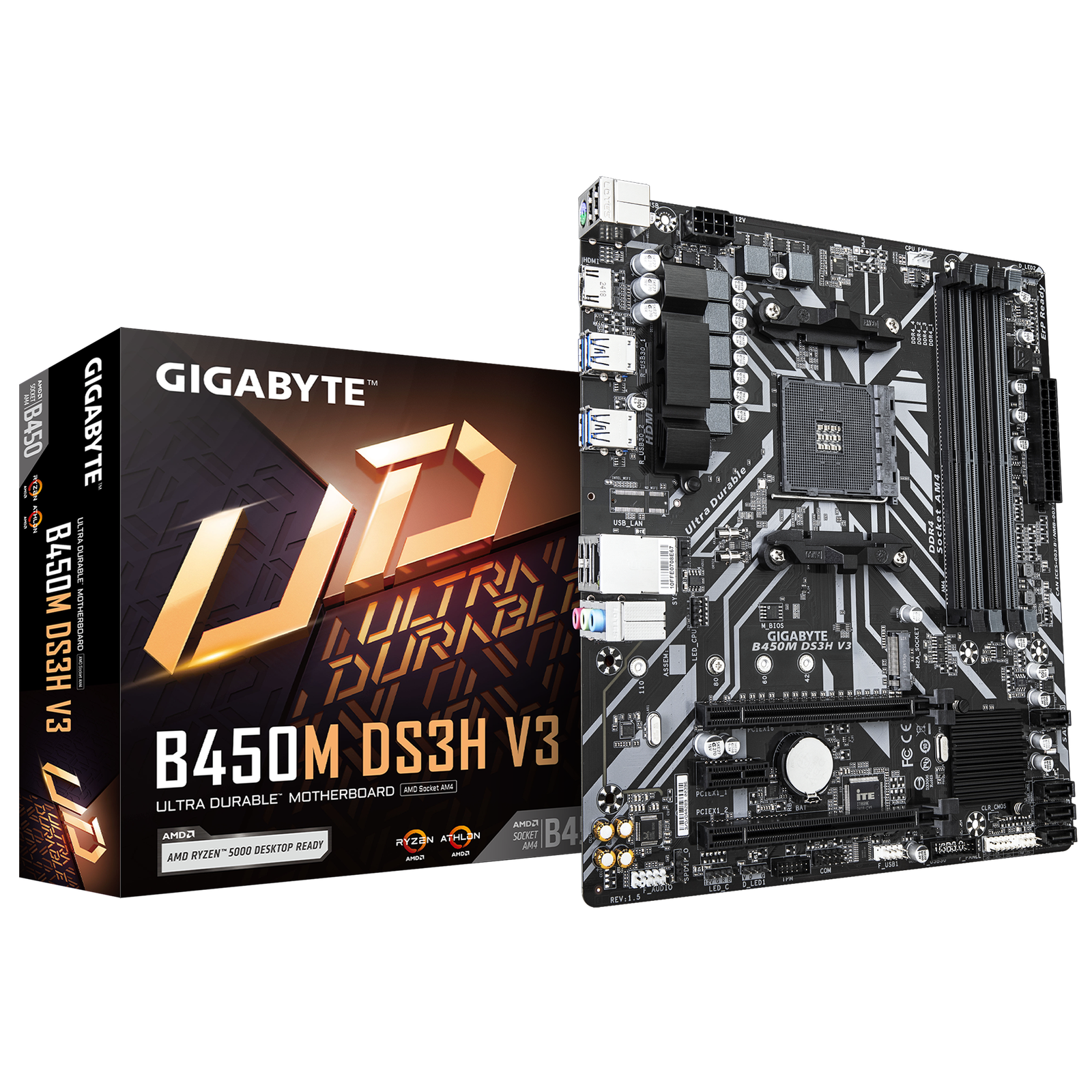

Gigabyte B450M DS3H V3 DDR4 AMD AM4 Micro-ATX Motherboard

Brand: Gigabyte

Model: Gigabyte B450M DS3H V3

Chipset: AMD B450 Sockets Supported: AM4

Built-in Processor: No

Supported CPU: Support AMD Ryzen 5000 Series/ AMD Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ 3rd Generation AMD Ryzen/ 2nd Generation AMD Ryzen/ 1st Generation AMD Ryzen/ 2nd Generation Ryzen with Radeon Vega Graphics/ 1st Generation Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors

Generation: Not Applicable

Back-Connect Design: No

Memory Type: DDR4

Memory Slot: 4

Memory Max.: 128GB

Optane Memory Support: No

Graphics: Integrated

Graphics Chipset: Integrated With Processor

PCI Express Slot: 1 x PCI Express x16 slot, Supporting PCIe 3.0 x16 mode, 1 x PCI Express x1 slot, Supporting PCIe 3.0 x1 mode

M.2/SSD Expansion Slot: 1

M.2/SSD Expansion Slot Details: 1 x M.2 (M2_1Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe* 3.0 x4/x2 SSD support)

WiFi: No

Bluetooth: No

USB Port: 4 x USB 2.0/1.1 Type-A, 4 x USB 3.1 Gen 1 Type-A VGA Port: 1

DVI Port: No

HDMI Port: 1

VGA Port: No

DisplayPort (DP): No

IDE Port: No

SATA Port: 4 x SATA

Thunderbolt: No

TPM Port: 1

COM Port: No

LAN Port: 1

LAN Speed (Mbps): 0/100/1000Mbps

Form Factor: Micro-ATX

Supported Operating System: Windows 10 / 11

Body Color: Black

Warranty Details: 3 year

Country Of Origin: Taiwan

Made in/ Assemble: China
