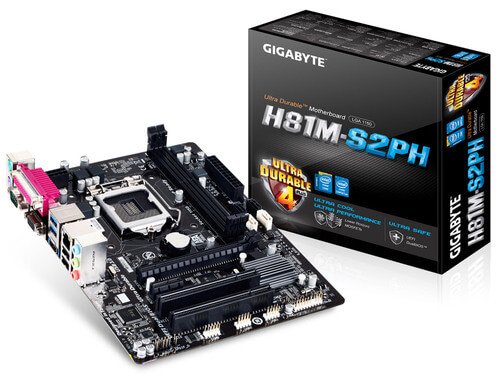

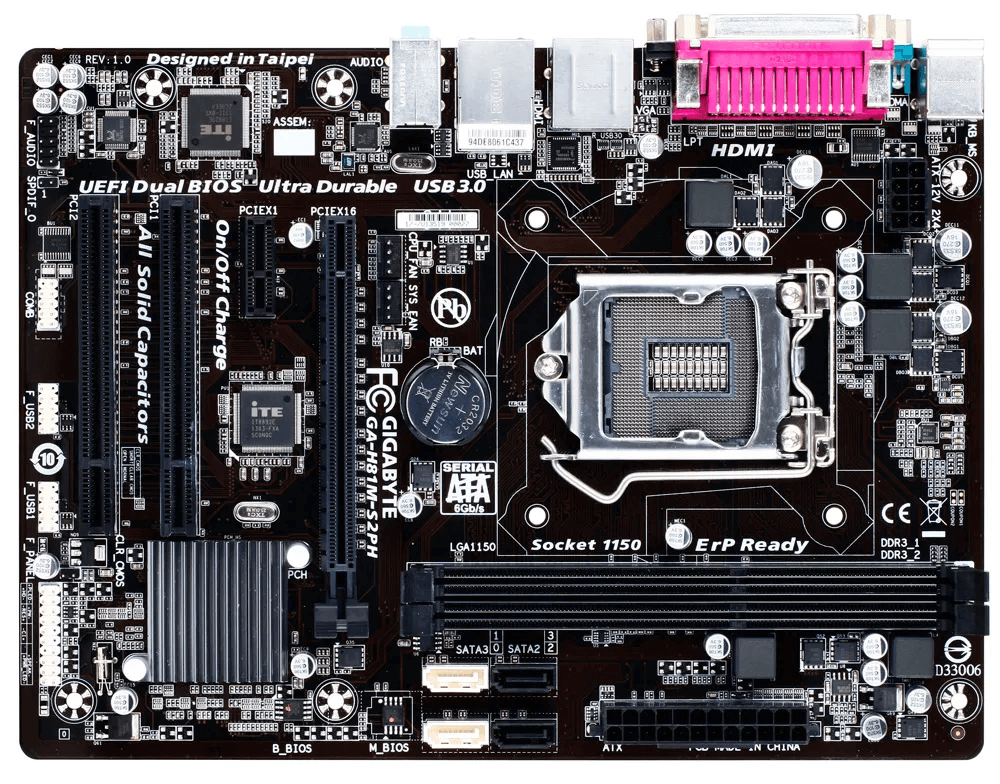

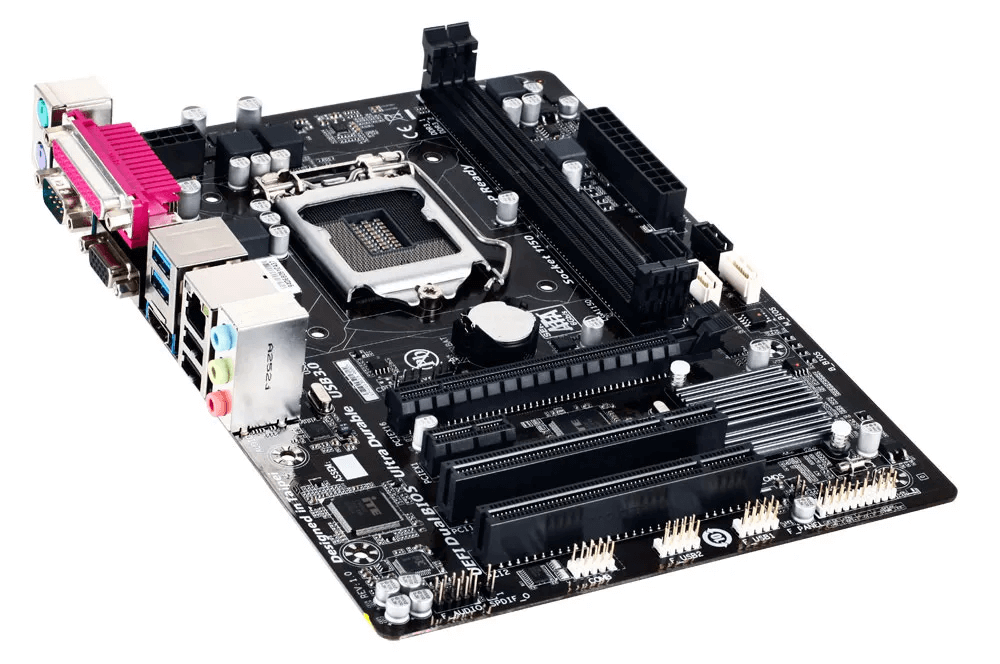

Brand: Gigabyte
Chipset: Intelยฎ H81 Express Chipset
CPU:
Support for Intelยฎ Coreโข i7 processors/Intelยฎ Coreโข i5 processors/Intelยฎ Coreโข i3 processors/Intelยฎ Pentiumยฎ processors/Intelยฎ Celeronยฎ processors in the LGA1150 package
L3 cache varies with CPU
BIOS:
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOSโข
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory:
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Onboard Graphics:
Integrated Graphics Processor โ Intelยฎ HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920ร1200
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
Maximum shared memory of 1 GB
Audio:
Realtekยฎ ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN: Realtekยฎ GbE LAN chip (10/100/1000 Mbit)
Expansion Slots:
1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 2.0 standard.)
2 x PCI slots
Storage Interface:
2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
USB:
Up to 2 USB 3.0/2.0 ports on the back panel
Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper

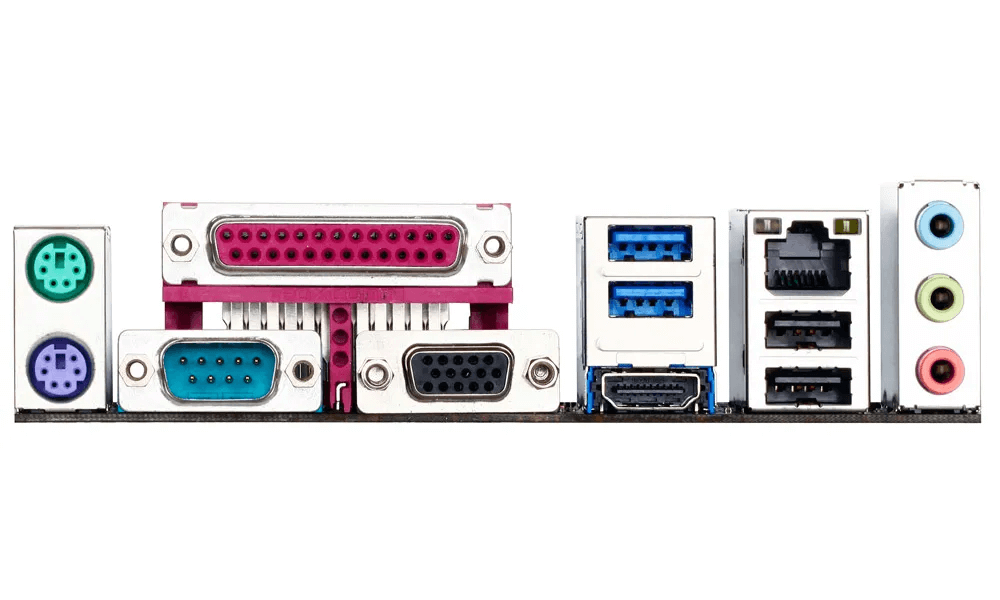

Back Panel Connectors:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x serial port
1 x D-Sub port
1 x HDMI port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
Unique Features:
Support for Q-Flash
Support for Xpress Install
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
Support for ON/OFF Charge
Operating System:
Support for Windows 10/8.1/8/7
Form Factor:
Micro ATX Form Factor; 24.4cm x 18.0cm
Warranty: Three Year Warranty
