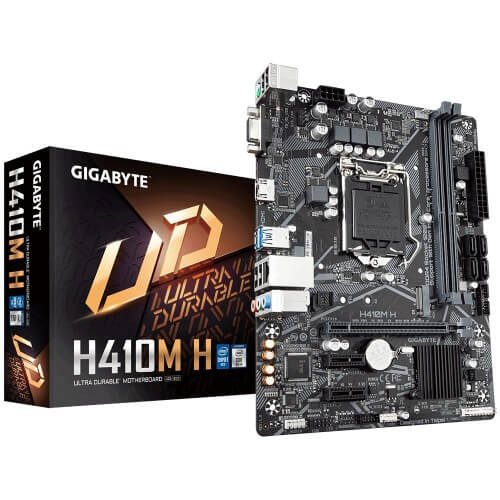

GIGABYTE H410M H DDR4 MOTHERBOARD

Brand: Gigabyte

Chipset: Intel H410 Express Chipset

CPU:

Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package

L3 cache varies with CPU

BIOS:

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory:

Intel® Core™ i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

Intel® Core™ i5/i3/Pentium®/Celeron® processors:

Support for DDR4 2666/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics:

Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz

Audio:

Realtek® audio codec

High Definition Audio

2/4/5.1/7.1-channel

LAN: Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots:

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

Storage Interface:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)

4 x SATA 6Gb/s connectors

USB:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors:

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

4 x SATA 6Gb/s connectors

1 x M.2 Socket 3 connector

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

Back Panel Connectors:

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x HDMI port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Unique Features:

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

Ambient LED

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

Smart Backup

System Information Viewer

Support for Q-Flash

Support for Xpress Install

Operating System:

Support for Windows 10 64-bit

Form Factor:

Micro ATX Form Factor; 22.6cm x 17.4cm

Warranty: Three Year Warranty
