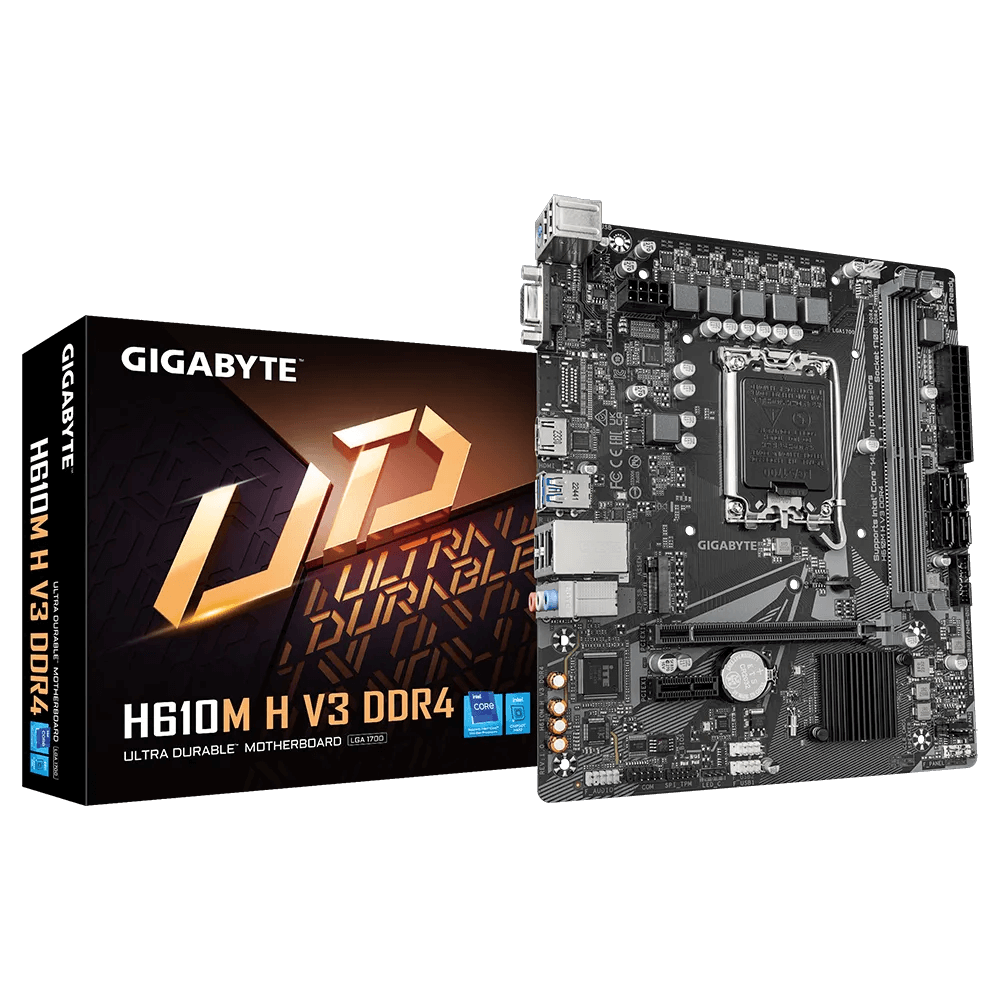

GIGABYTE H610M H V3 DDR4 MOTHERBOARD

Brand: Gigabyte

Chipset: Intel H610 Express Chipset

CPU:

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

BIOS:

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory:

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Onboard Graphics:

Integrated Graphics Processor-Intel® HD Graphics support:

– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

Audio:

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN: Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Expansion Slots:

CPU:

– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface:

Chipset:

– 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD

support)

– 4 x SATA 6Gb/s connectors

USB:

Chipset:

– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

– 4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

– 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors:

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x Clear CMOS jumper

1 x chassis intrusion header

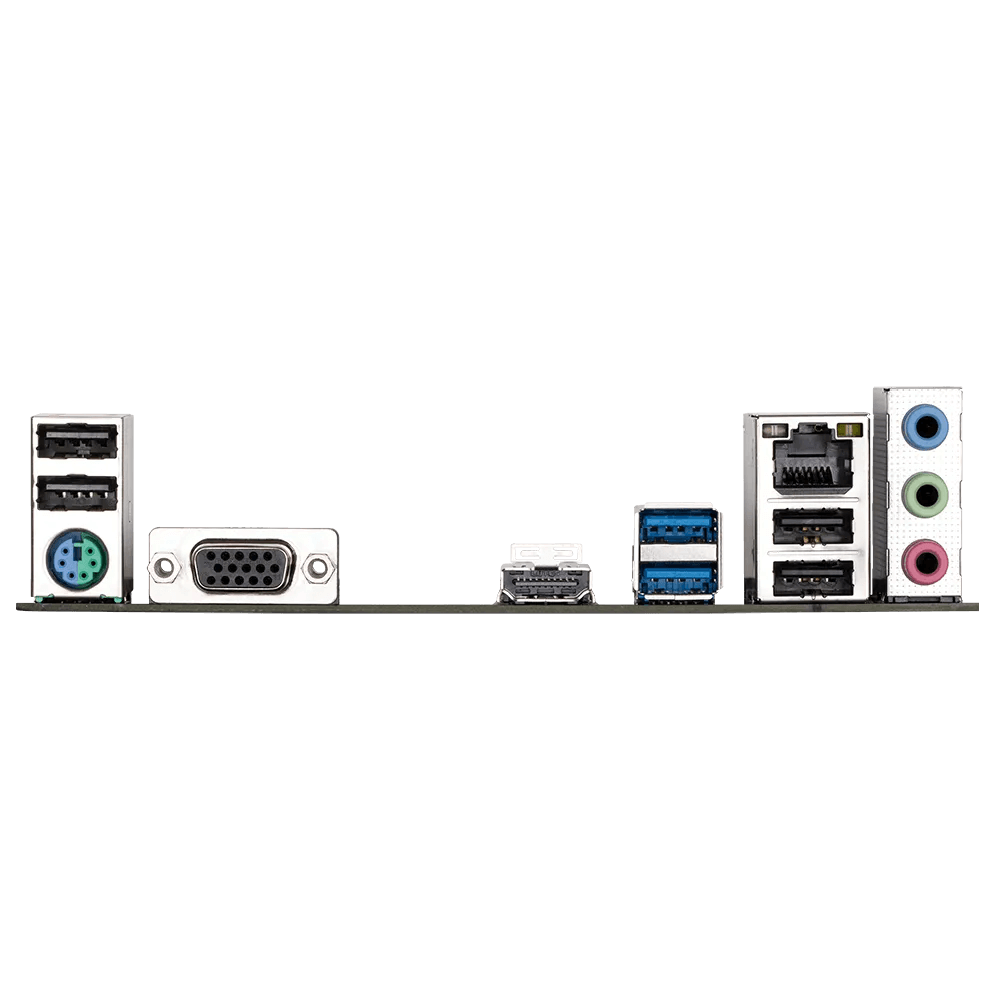

Back Panel Connectors:

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x HDMI port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Unique Features:

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

– @BIOS

– EasyTune

– Smart Backup

– System Information Viewer

Support for Q-Flash

Operating System:

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor:

Micro ATX Form Factor; 22.3cm x 19.3cm

Warranty: Three Year Warranty
