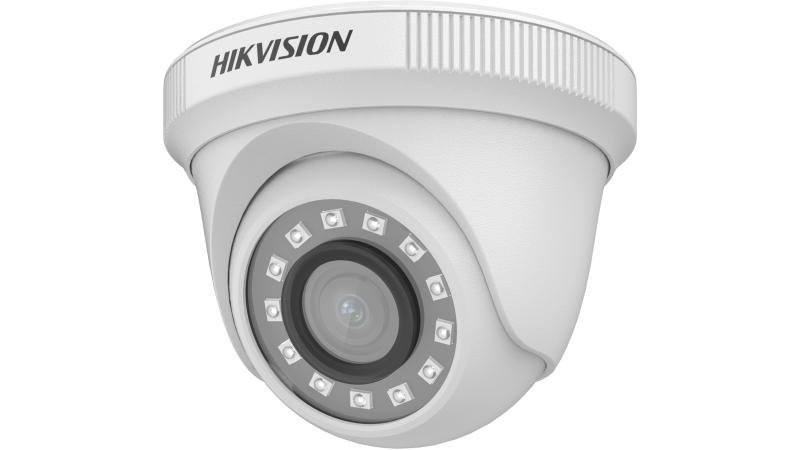

Hikvision DS-2CE56DOT-IRF 2MP Fixed Mini Dome Camera

Brand: Hikvision

Model: Hikvision DS-2CE56DOT-IRF

Camera:-

Image Sensor: 2 MP CMOS

Signal System: PAL/NTSC

Max. Resolution: 1920 (H) × 1080 (V)

Min. Illumination: 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Day & Night: ICR

Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens:-

Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens

Focal Length & FOV: 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°

3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°, 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

Lens Mount: M12

Image:-

Image Parameters Switch: STD/HIGH-SAT

Image Settings: Brightness, Sharpness, Smart IR

Frame Rate:

TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC

Day/Night Mode: Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR): Digital WDR

Image Enhancement: BLC, HLC

White Balance: Auto/Manual

AGC: Yes

Interface:-

Video Output: Switchable TVI/AHD/CVI/CVBS

General:-

Language: English

Operating Condition: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)

Material: Metal

Communication: HIKVISION-C

Dimension: 89.9 mm × 70.1 mm (Φ 3.54″ × 2.76″)

Weight: Approx. 173 g (0.38 lb.)

Power: 12 VDC ± 25%, Max. 3.3 W

Approval:-

Protection: IP67

Country Of Origin: China

Made in/ Assemble: China

Warranty: One Year Warranty
