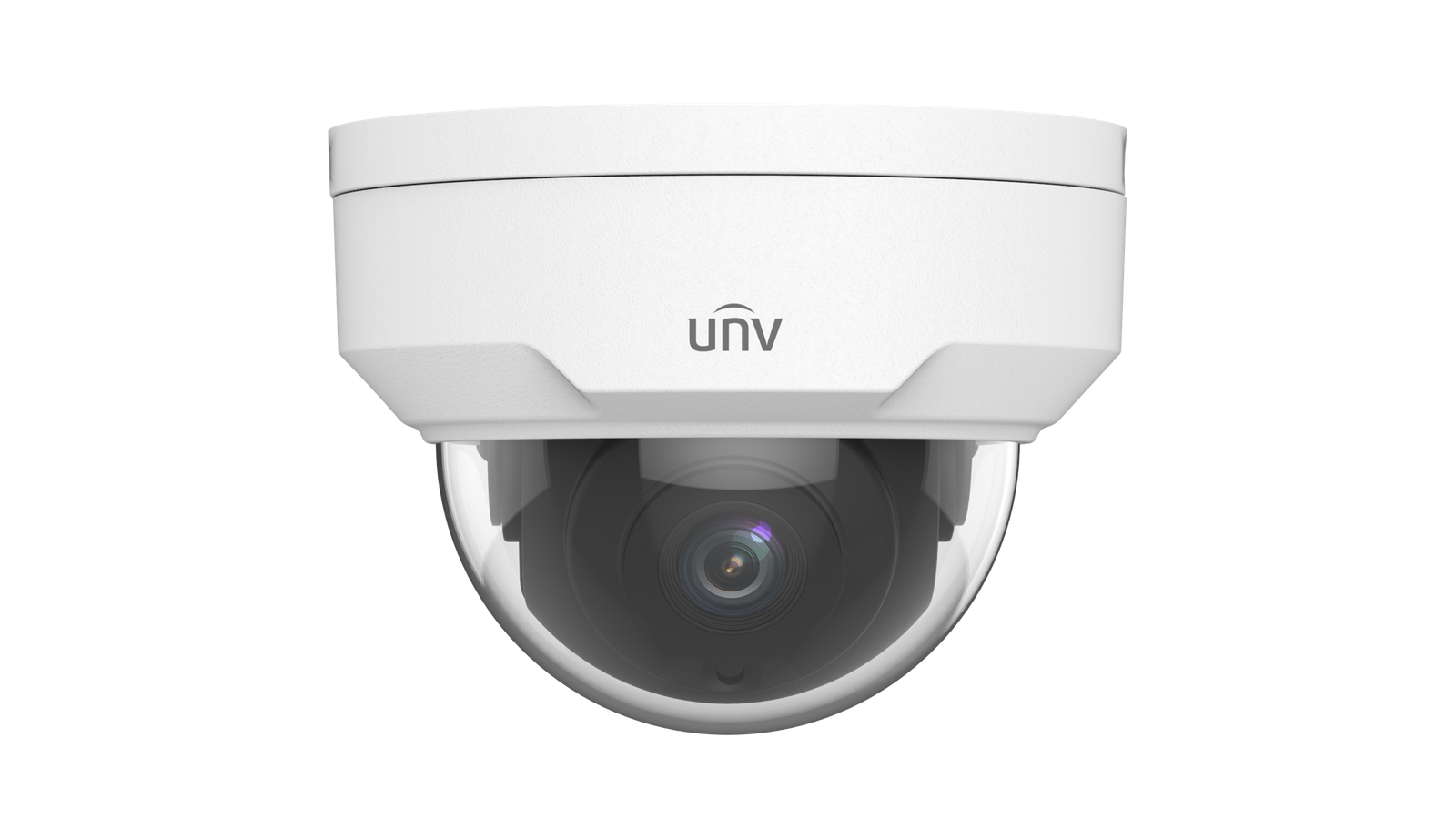

Uniview IPC322LB-SF28 A 2MP Fixed IR Dome Network Camera

Brand: Uniview

Model: Uniview IPC322LB-SF28 A

Camera:-

Max Resolution: 2 MP

Sensor: 1/2.8″ CMOS

Min. Illumination: Colour: 0.01 lux (F2.0, AGC ON)0 lux with IR on

Day/Night: IR-cut filter with auto switch (ICR)

Shutter            : Auto/Manual, 1 ~ 1/100000s

Adjustment Angle: Pan: 3° ~ 360°, Tilt: 0° ~ 75°

S/N: >52 dB

WDR: DWDR

Lens:-

Focal Length: 2.8 mm

Iris Type: Fixed

Iris; F2.0

Field of View (H): 101.1°

Field of View (V): 56.5°

Field of View (D): 117

DORI:-

DORI Distance (Lens): 2.8mm

DORI Distance (Detect): 45.0m(147.6ft)

DORI Distance (Observe): 18.0m(59.1ft)

DORI Distance (Recognize): 9.0m(29.5ft)

DORI Distance (Identify): 4.5m(14.8ft)

Illuminator:-

Supplemental Light: IR

Illumination Distance (IR): 30 m (98.4 ft)

Wavelength: 850 nm

IR On/Off Control: Auto/Manual

Video:-

Video Compression: Ultra 265, H.265, H.264

H.264 Code Profile: Baseline profile, Main profile, High profile

Frame Rate: Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;

Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps

Video Bit Rate            : 128 Kbps to 6144 Kbps

U-code            : Support (Main stream)

OSD: Up to 4 OSDs

Privacy Mask: Up to 4 areas

ROI: Support

Video Stream: Dual Streams

Image:-

White Balance : Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Digital Noise Reduction: 2D/3D DNR

Smart IR: Support

Flip: Normal, Flip Vertical, Flip Horizontal, 180°

Dewarping: N/A

HLC: Support

BLC: Support

Defog: Digital Defog

Events:-

Basic Detection: Motion Detection

General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication

Network:-

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP

Compatible Integration: ONVIF (Profile S, Profile T) ,API, SDK

User/Host: Up to 32 users, 2 user levels: administrator and common user

Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF

Client: EZStation, EZView, EZLive

Web Browser: Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface:-

Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

General:-

Power: DC 12V±25%, PoE (IEEE 802.3af)

Power Consumption: Max 5.0W

Power Interface: Ø5.5 mm coaxial power plug

Dimensions: Ø109 x 81mm (Ø4.3” x 3.2”) (Ø x H)

Weight            : 0.35kg (0.77lb)

Material: Metal + Plastic

Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Surge Protection: 4 KV

Reset Button: N/A

Web Client Language: 1Language English

Approval:-

Protection: IP67

Country Of Origin: China

Made in/ Assemble: China

Warranty: One Year Warranty
