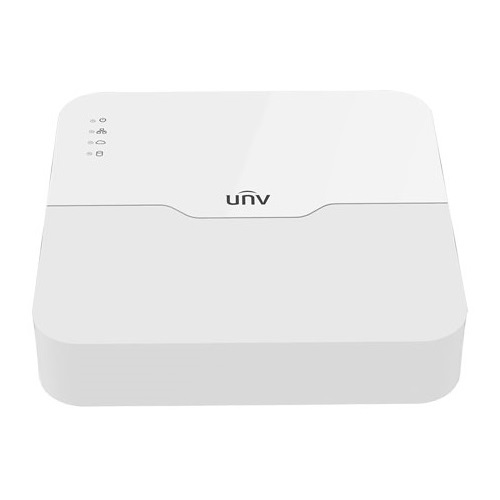

Uniview NVR301-04LB-P4 4 Channel NVR

Brand: Uniview

Model: Uniview NVR301-04LB-P4

Type: 04 Channel (NVR)

Number of Input Channel: 04 Channel

Incoming Bandwidth: 40Mbps

Outgoing Bandwidth: 40Mbps

Remote Users: 128

Protocols: P2P, UPnP, NTP, DHCP, PPPoE

Video Output (VGA): 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz

Video Output (HDMI): 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz

Max. Video Recording Res.: 1080p/960p/720p/D1/2CIF/CIF

Dual Stream Support: Unmentioned

Live View / Playback Resolution: 1080p/960p/720p/D1/2CIF/CIF

Number HDD Interface (SATA): 1 SATA interface

Max HDD Support (GB,TB): Up to 8 TB

Interface: 4 independent 100 Mbps PoE network interfaces

Max Power: Max 30W for single port

Max: 54W in total ( 13.5W for each)

Supported: Standard IEEE 802.3at, IEEE 802.3af

Wi-Fi: No

USB Port: 2 x USB 2.0

Power Adapter: 48V DC

Power Consumption: ≤5 W( without HDD )

Color: White

Dimensions: 205mm × 205mm × 42mm(8.1″ × 8.1″ × 1.7″)

Weight (Kg): 0.64kg ( 1.41lb )

Smart Phone Supported: Yes

Supported Camera Models: ONVIF and RTSP

Warranty Details: 1 year
