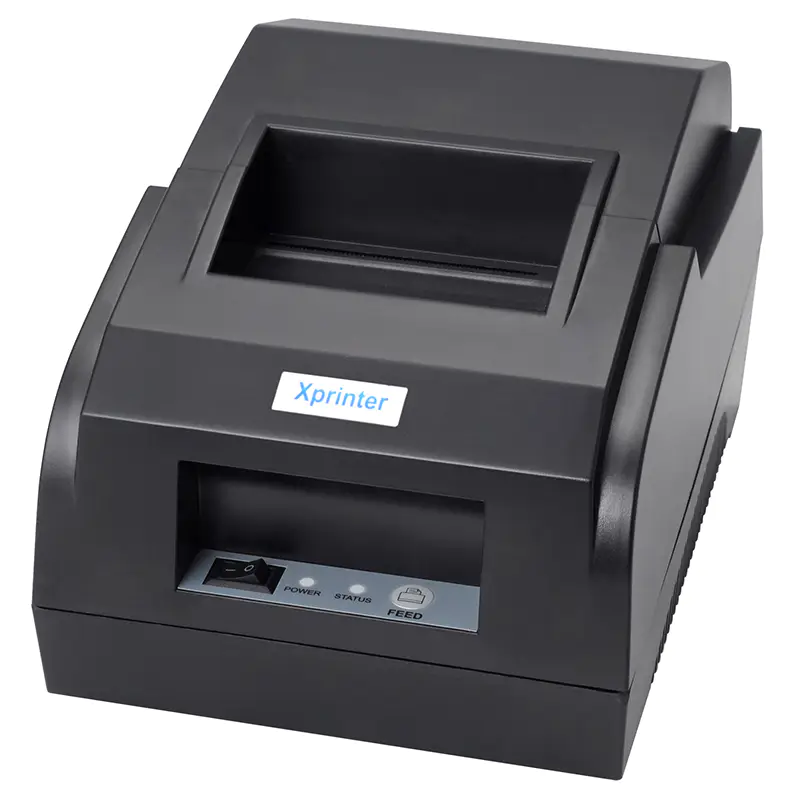

| Model | XP-58IIL |
| Printing | |
| Printingย method | Direct thermal |
| Paper width | 57.5ยฑ0.5mm |
| Print width | 48 mm |
| Columnย capacity | 384 dots/line(adjustable by command) |
| Printingย speed | 90 mm/sย Max. |
| Interface | USB/USB+Lan/USB+Bluetooth/Parallel |
| Lineย spacing | 3.75mmย (Adjustableย byย commands) |
| Fonts Symbology | |
| Character size | AFont A: 12×24, Font B: 9×17, CHN: 24*24 |
| Characters /Line | Font A: 32 chars Font B: 42 chars CHN: 16 Character Sets |
| 1D Barcode | UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 |
| 2D Barcode | QR code (Available with USB+Lan Interface) |
| Inputย buffer | 32 Kbytes /ย 64 Kbytes |
| NV Flash | 64 Kbytes |
| Power | |
| Powerย adaptor | AC 110V/220V, 50๏ฝ60Hzย ย ย ย ย Output :ย DC 12V/2.6A |
| Powerย source | DC 12V/2.6A |
| Cashย drawerย output | DC 12V/1A |
| Physicalย characteristics | |
| Weight | 0.561kg |
| Dimensions | 181*130*111.2mm๏ผDรWรH๏ผ |
| Environmentalย Requirements | |
| Workย environment | Temperatureย (0๏ฝ45โ)ย ย humidity(10๏ฝ80%) |
| Storageย environment | Temperature(-10๏ฝ60โ) humidity(10๏ฝ80%) |
| Reliability | |
| Printerย head life | 50 KM |
| Software | |
| Emulation | ESC/POS |
| Driver | Windows/Linux/Android/Mac |
| Utility | Windows & Linux test Utility |
| SDK | iOS/Android/Windows |
| Warranty | 1-Year Warranty (Without Adapter) |
